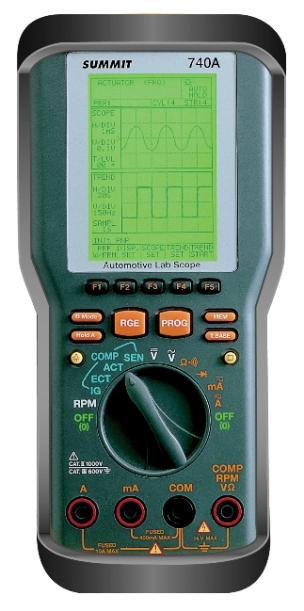

        The SMS740A is a battery powered hand-held automotive oscilloscope
.

        DC to 500kHz bandwidth

        True-RMS autoranging

        Auto setting for horizontal and vertical divisions

        Single or dual waveform display

        Component test for checking component signatures on sensors, actuators, electrical, ignition

        Optically isolated RS-232 interface for transferring measurement data and waveforms






















Oscilloscope spec


HORIZONTAL
Sample rate  20 Meg samples per second

Record length  512 in single shot and glitch, 256 in all others

Samples/ division  20

Accuracy  0.01 %

Sweep rate  1S to 1S in 1, 2, 5 sequence

VERTICAL
Bandwidth  500 kHz

Resolution  8 bit

Channels  1

Input impedance  1.11 M

Accuracy  3 %

Max input voltage  1000 Vp-p

TRIGGERING
Type  Internal

Coupling  AC, DC, Glitch capture

Sensitivity  2/20 division

Memory  43 shot

Multimeter spec


DC Voltage
 Range 400mV - 1000V
 Resolution 0.1mV - 1V
 Accuracy 0.3% of reading 2 digits

AC Voltage
 Range 300mV - 750V
 Resolution 0.1mV - 1V
 Accuracy (0.75% + 5)

DC Current
 Range 400A - 10A
 Resolution 0.1A - 0.01A
 Accuracy (0.5 to 0.75)% of reading 5 digits

AC Current
 Range 300A to 10A
 Resolution 0.1A to 0.01A
 Accuracy (0.75 to 2)% (10 to 40)digits

Resistance
 Range 400 to 30M
 Resolution 0.1 to 0.01M
 Accuracy 0.5% (5 to 10)digits

RPM
 Range 60 to 12000
 Resolution 1rpm
 Accuracy 2rpm

% Duty
 Range 0.0 - 99.9% (30 to 19000rpm, pulse width 0.5mS)

Dwell
 Range 0.0 - 356.4 (30 to 19000rpm, pulse width 0.5mS)

Pulse width
 Range 0.2 - 1999.9mS (30 to 19000rpm, pulse width 0.5mS)

Frequency
 Range 0.1 - 4000Hz (30 to 19000rpm, pulse width 0.5mS)

This is only specifically made automotive oscilloscopes I would recommend for the beginner, or anybody who is unsure of the settings on a non-automotive scope, its a good simple tool, with a fair sized LCD screen for about 550ish (28-04-07) downside is it only has an analogue bandwidth of 500khz.  It has a pre-programmed memory and it is a third of the price of "big named scopes" from Snap-on (Sun), Sykes Pickavant, Mac, OTC, Bosch FSA450, Vetronix, Crypton or the discontinued Fluke 98-2 or Bosch PMS100.  But if you don't mind studying the subject of scopes and learning how to set one up.  You can find allot more scope for your money if you have 500 to spend.
