New & Secondhand EDC diesel pumps - injectors - HP pumps & parts for sale

Page updated 05-03-17

All secondhand pumps-parts are bench tested prior to dispatch & have a limited 90 day warranty.

email  p@remmington.plus.com

site index A-Z

EDC electronic diesel pump testing/repair info

Please note:  The most cost effective solution to many diesel pump problems is to have your own pump tested & repaired.  Some pumps listed bellow will need reprogramming to match the security settings on your vehicle, thus adding cost to having a secondhand pump fitted.  In general, I would always advise repair over replacement, it tends to work out cheaper in the long run.

Stock & Prices are changing daily, please ring to check availability. (Due to the strength of the €uro at the moment most of our stock is sold very quickly to European customers).

The secondhand diesel pumps below do not need re-programming just bolt them on & away you go!

GM Vauxhall 2.0    Zafira - Astra - Vectra     VP44 (DTH)     011   £250 + £12.50 UK delivery

GM Vauxhall 2.0    VP44 Low Blow (DTL)     003   £275 + £12.50 UK delivery

GM Vauxhall-Opel 1.7    Astra    VP30 GM Engine     003   £250 + £12.50 UK delivery

GM Vauxhall-Opel 1.7    Astra 02>  Denso   £750 + £12.50 UK delivery

GM Vauxhall 2.0 or Saab (95TiD)    VP30     004    £320 + £12.50 UK delivery

GM Vauxhall 2.0    VP44 Low Blow (DTL)     004    £300 + £12.50 UK delivery

GM Vauxhall 2.0    09/2000 - 08/2001 (GM engine made in Spain)    VP44      015    £400 + £12.50 UK delivery

GM Vauxhall 2.2    Omega - Fronterra - Vectra 2.2DTi   016     £250 + £12.50 UK delivery

GM Vauxhall 2.2    Fronterra    009     £225 + £12.50 UK delivery

GM Zafira - Ford Focus     VP44     012    £275 + £12.50 UK delivery

Ford Connect 1.8    008    £250 + £12.50 UK delivery

Ford 1.8 TDDi     007    £250 + £12.50 UK delivery

Ford Transit      VP30     004    £250 + £12.50 UK delivery

Ford Focus - Fiesta    VP30     012        £175 + £12.50 UK delivery

Ford Mondeo TDDi    VP 021 - 024    £200 + £12.50 UK delivery

Land Rover Freelander 2.0TDi    1999-2000    VP37    £300 + £12.50 UK delivery

Mercedes     Sprinter    995    £250 + £12.50 UK delivery

VAG    VW SDi     964    £200 + £12.50 UK delivery

VAG    2.5TD    002    £300 + £12.50 UK delivery

VAG    2.5TD    030    £330 + £12.50 UK delivery

Lucas Epic XUDL.PO1    Citroen Xantia 2.1TD 1997    (rare early 481 body mod:FPF)         £450 + £12.50 UK delivery

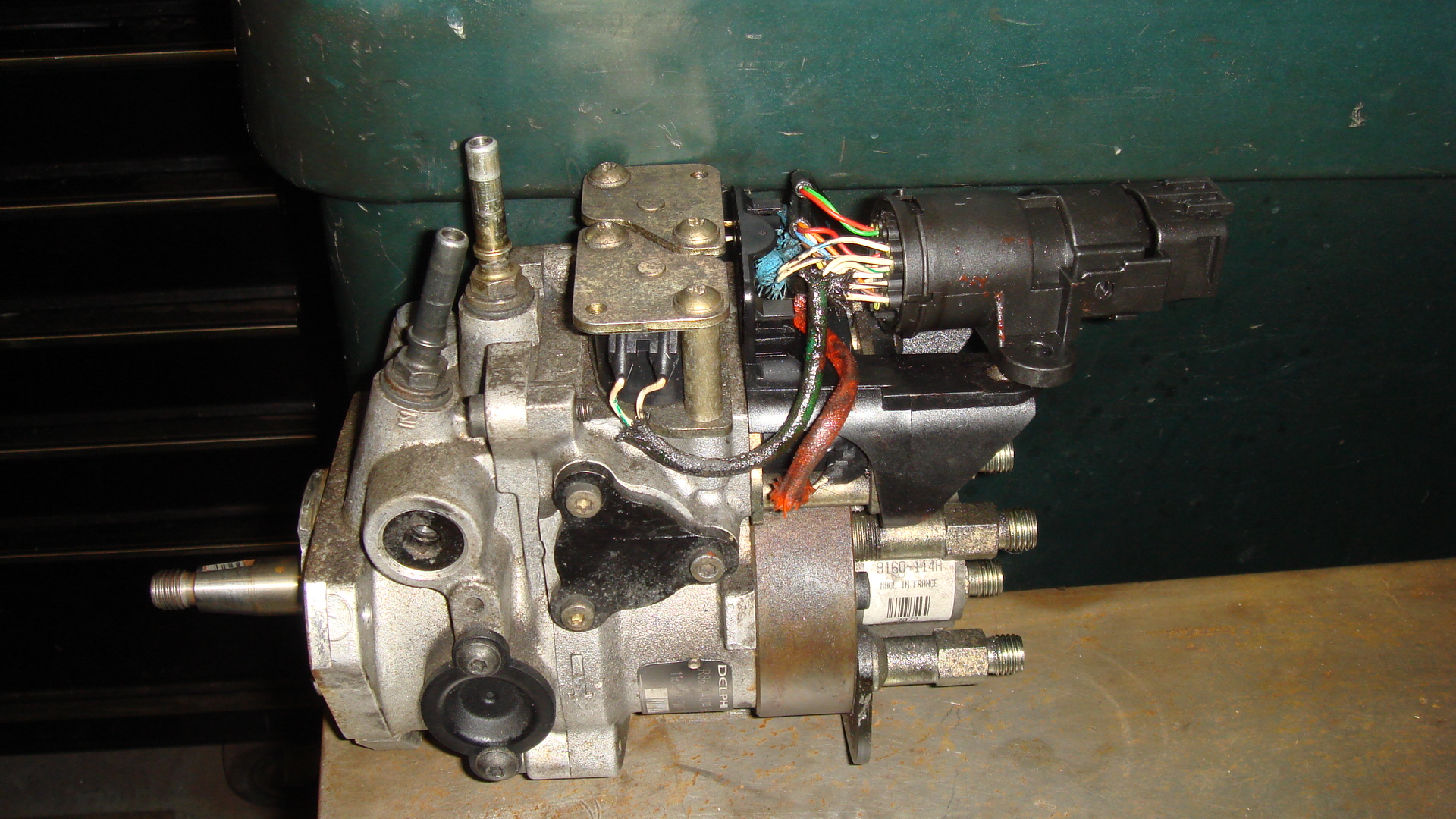

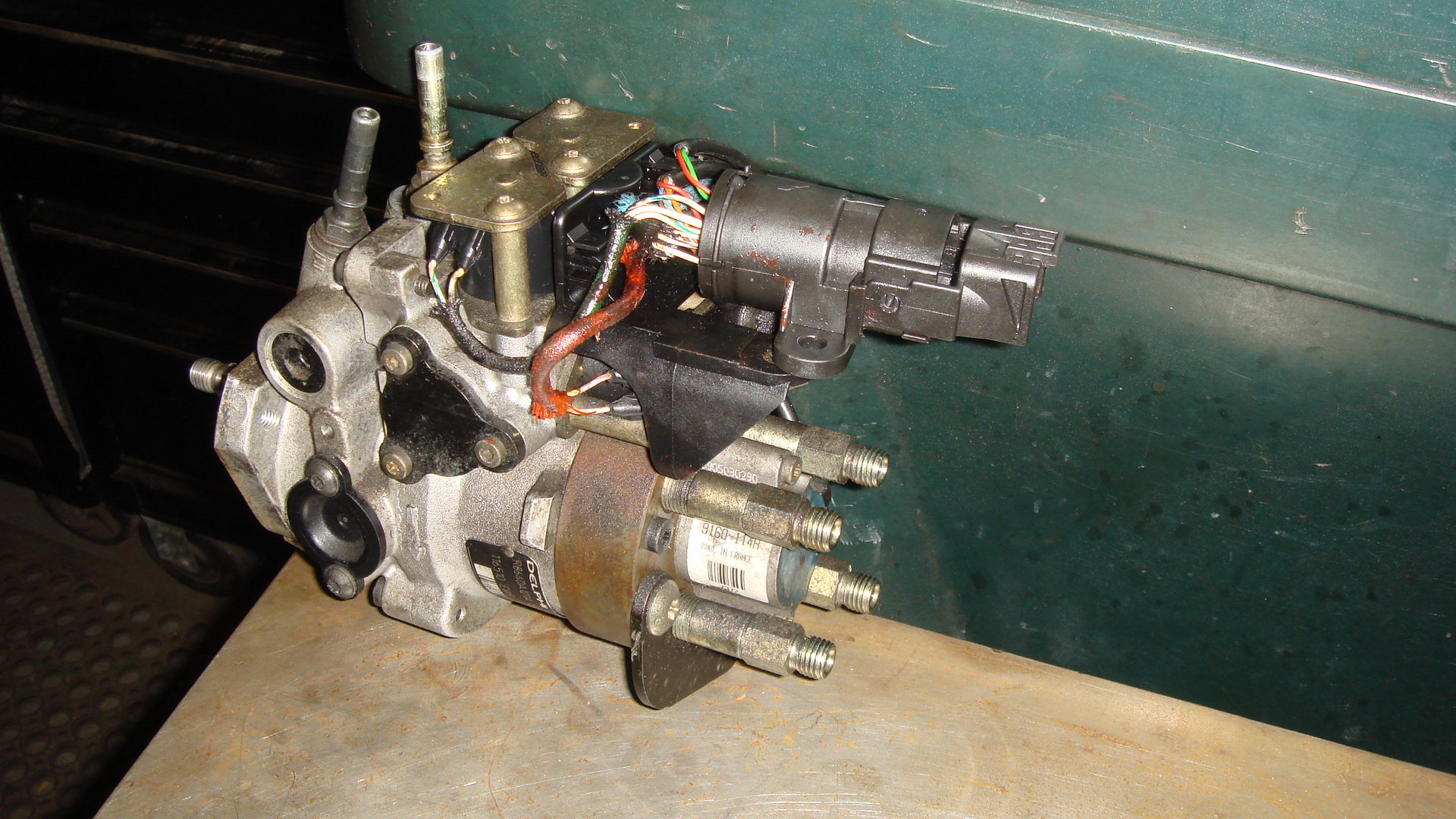

Lucas Epic R8640A121A    Reconditioned pump, new internal pump rota fitted by us at our workshop!  Last of the Lucas UK repair kits available before Delphi (USA) took them over! (Can't be repeated as no parts left in the UK)  Last one!  £650 plus delivery

Lucas Epic R8640A121A    Three part electronic solenoid kit.  Used but tested A1 100% OK   £200 + £11.00 UK delivery

Lucas Epic R8640A121A    (Only one in stock)     £325 + £12.50 UK delivery

The secondhand diesel pumps below need re-programming in situ after fitting.

Nissan  2.5 TD     965    £200 + £12.50 UK delivery

Toyota Corolla 2.0D 99  2-CE  Denso VE    £350 + £12.50 UK delivery

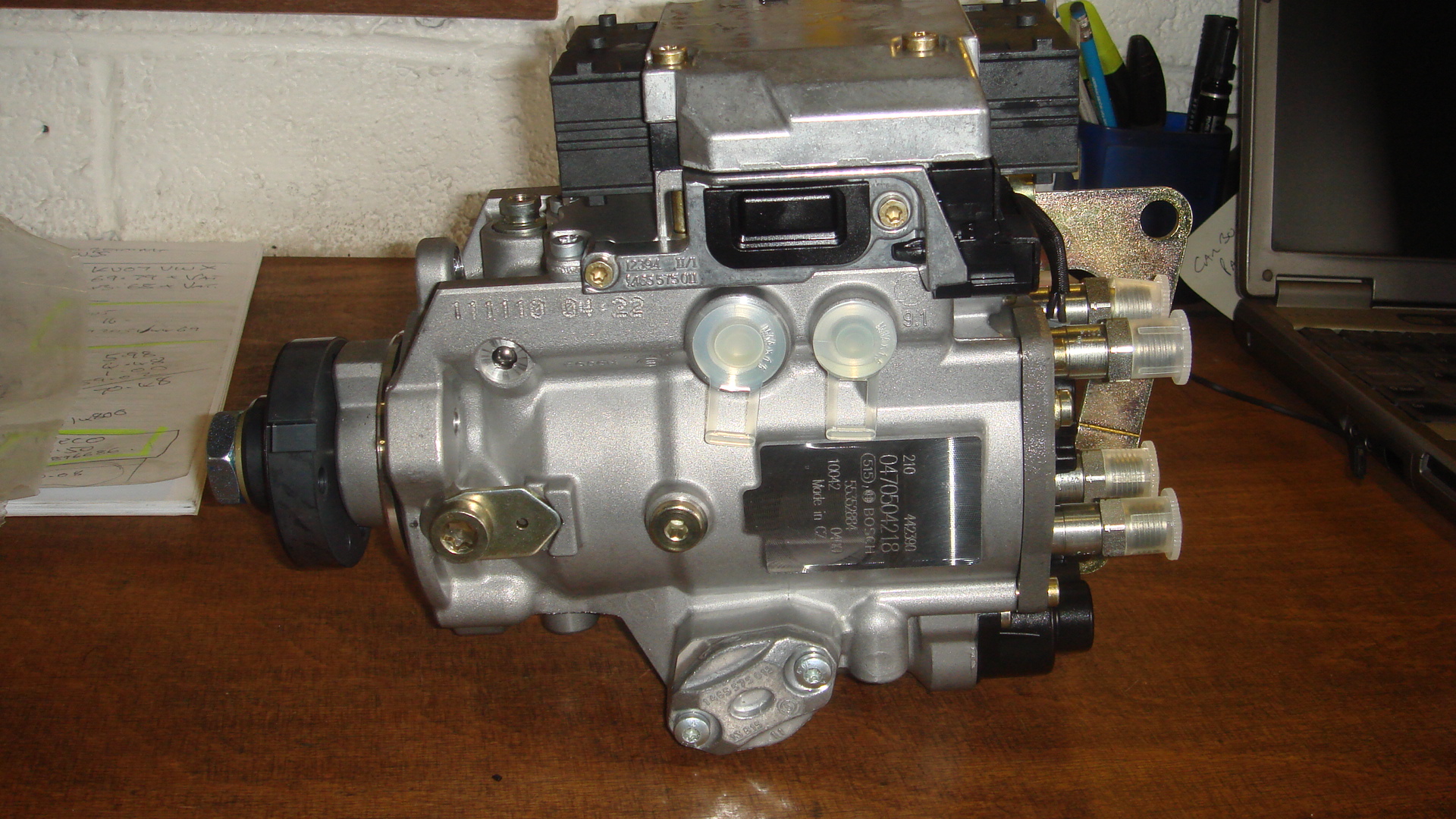

Brand new pumps that will need re-programming in situ after fitting.

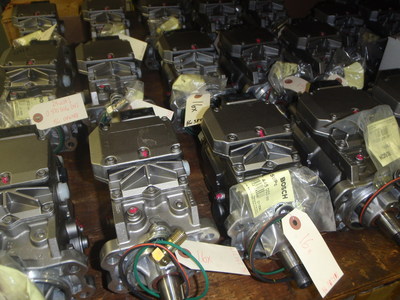

GM Vauxhall Saab applications VP44 PSG16  0470504217 superceeds 0470504226   Retails at £1980.00    *Brand New with 1 year warranty*    £1755 inc UK delivery  (only two left at this price)

0470504201 0470504202 0470504203 0470504204 0470504205 0470504206 0470504207 0470504209 0470504212 0470504213 0470504214 0470504215 0470504216 0470504218 0470504219 0470504221 0470504223 0470504224 0470504225 0470504227   *Brand New with 1 year warranty*     Available nextday Price on application.



0470504218  *Brand New with 1 year warranty*     Available nextday £1480 inc UK delivery  (only five left at this price)



Brand new pumps that do not need re-programming in situ after fitting.

Ford Transit  2.4      VP44     002    Part number: YC1Q-9A543-D A    Retails at Ford for £1227.73     *Brand New with 1 year warranty*    £700 + £12.50 UK delivery



Secondhand Common Rail Injectors

Kia Sedona 2.9 CRDi     Delphi     03>    7 injectors in stock    £95 each + £6.00 UK delivery

Audi V6 TDi  2 injectors in stock   £160 each + £6.00 UK delivery



Secondhand dual stage injectors

Ford Transit 2.4 00>06 duratorq TDDi injectors.  Set of four!  Ground dual stage nozzles, tested and ready to go!  £200 the set + £10 UK delivery



Secondhand HP single port high pressure pumps

Kia Sedona 2.9 CRDi     Delphi    03>     £180 + £12.50 UK delivery



Secondhand HP common pressure rail complete with pressure sensor.

Kia Sedona 2.9 CRDi     Delphi    06>  J2.9 engine code   R9144Z100A  31500 - 4X400  (new price £648 inc Vat)  £185each + £12.50 UK delivery  (check your part number there is a choice of two fitted to these vehicles)



The secondhand parts below will not need re-programming just bolt them on & away you go!

Ford Focus  07> TDCi common rail pump three way solenoid valves  £80each + £6.00 UK delivery

GM-Isuzu 1.7 Diesel fuel pump ECU    8971891360 16267710 EDU     £95 + £7 UK delivery

Range Rover - BMW. 6cyl  2.5TD VE volume IE valve  £50 + £5 UK delivery

Range Rover - BMW. 6cyl  2.5TD VE advance solenoid.  Part number: 0 281 002 142  £50 + £5 UK delivery

Range Rover - BMW.   2.5TD VE  6cyl rotor distributor head plus four screws & seal, genuine Bosch.  With care-cleanliness it can fitted to the pump in situ.  £125 + £10 UK delivery

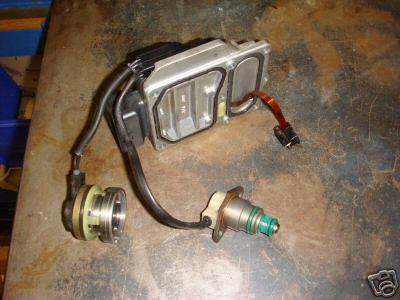

GM Vauxhall 2.0    0 470 504 003 VP44 (DTL).  Full EDC diesel pump electronics.  Top electronic module, upper spooling delivery solenoid, lower advance spooling solenoid, internal three coil position sensor, inc ribbon cable.  All wired up, ready to "plug and play".  No soldering required, just three sizes of torx screwdriver-bits needed to fit it.  With care it can fitted to the pump in situ in the engine bay.  Thus saving the long - 6hr job of removing/refitting the diesel pump.  £200 + £9.75 UK delivery

GM Vauxhall 2.0  Zafira - Astra - Vectra  0 470 504 011 VP44 (DTH).  Full EDC diesel pump electronics.  Top electronic module, upper spooling delivery solenoid, lower advance spooling solenoid, internal three coil position sensor, inc ribbon cabe.  All wired up, ready to "plug and play".  No soldering required, just three sizes of torx screwdriver-bits needed to fit it.  With care it can fitted to the pump in situ in the engine bay.  Thus saving the long - 6hr job of removing/refitting the diesel pump.  £225 + £9.75 UK delivery

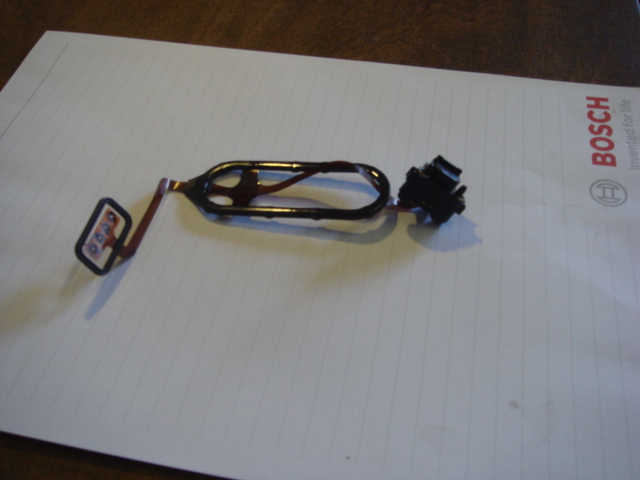

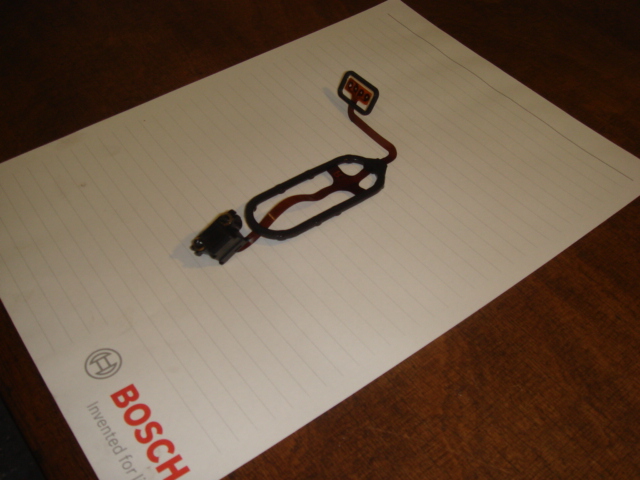

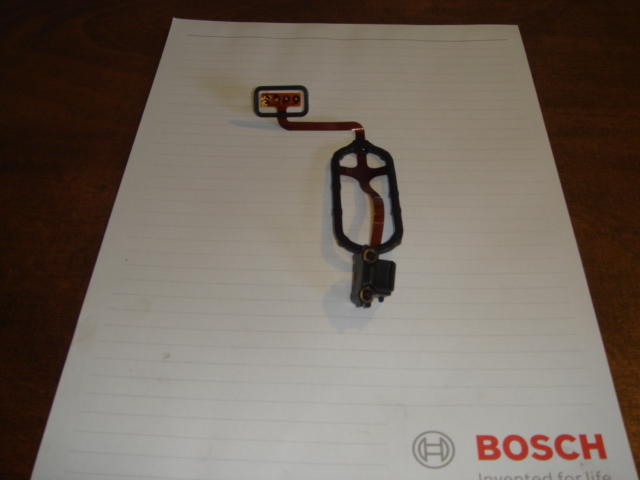

PSG16 VP44 Pump cam-crank internal sensors.  IBM ribbon cable with hall effect three coil pick-up.  Which can be soldered into the pump in-situ without pump removal!  £85 + £6 UK delivery

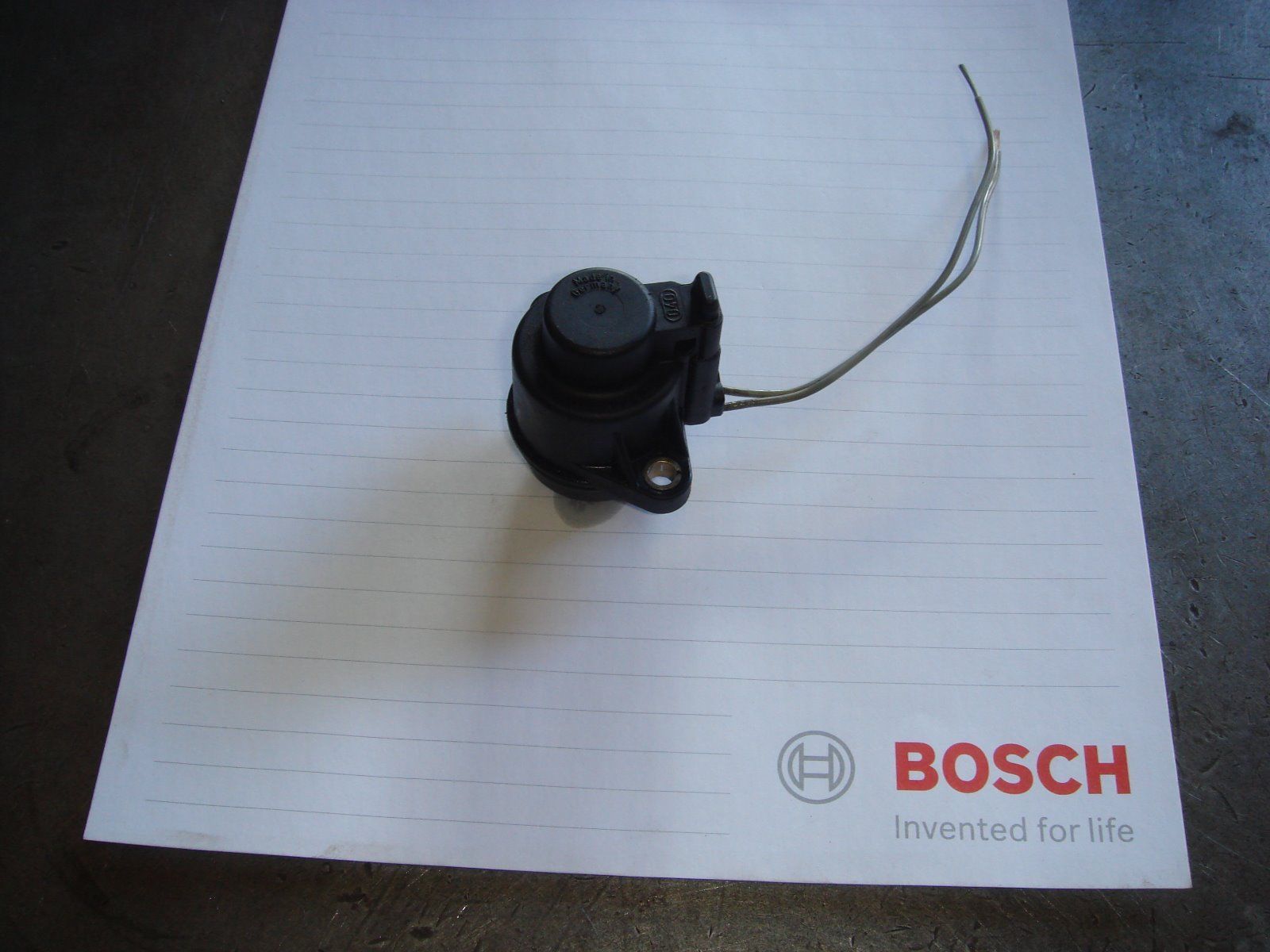

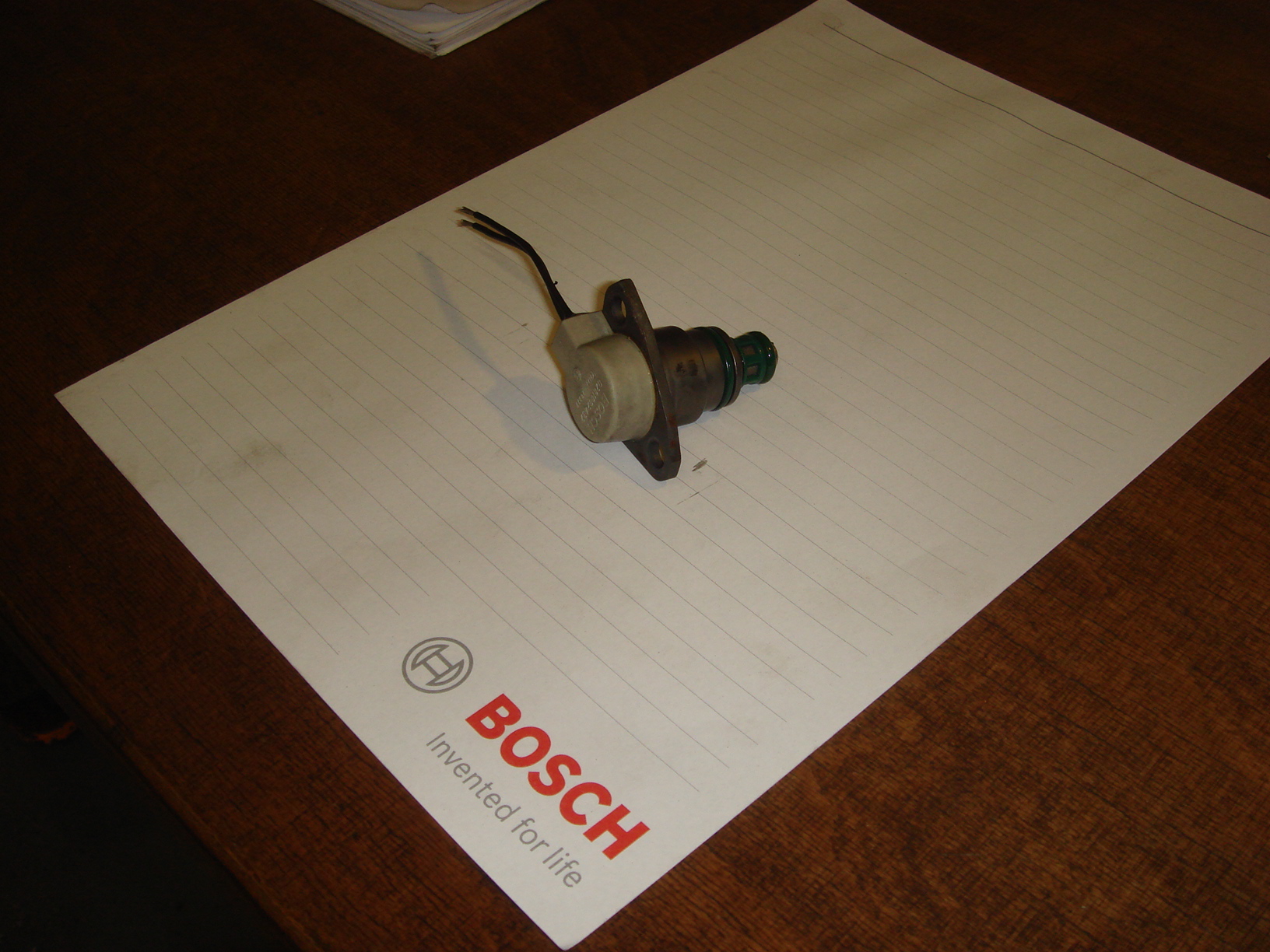

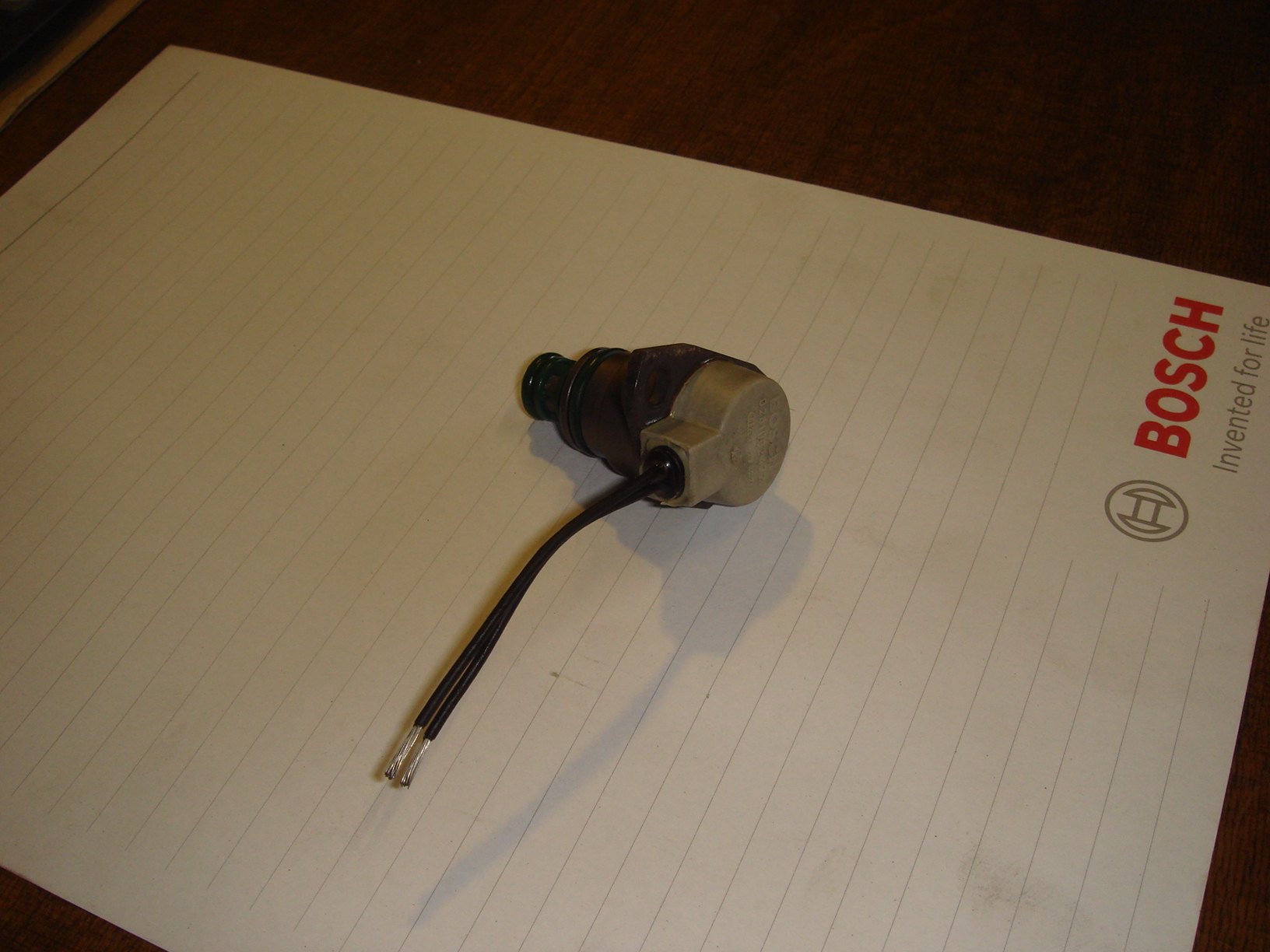

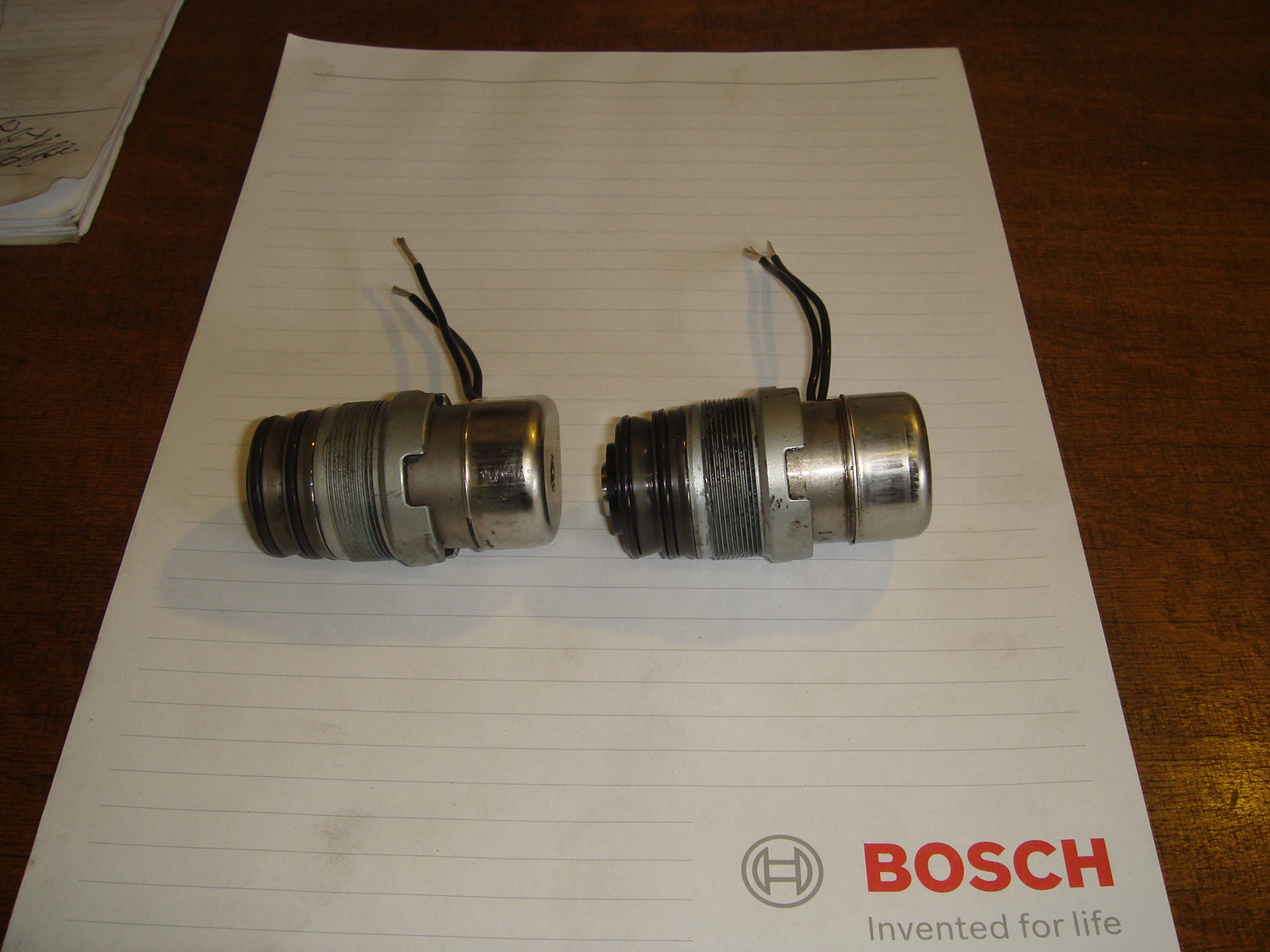

PSG16 VP44 Pump advance (timing) solenoid.   Which can be fitted to the pump in-situ without pump removal!  £70 + £6 UK delivery

(These are a common failure, EDC pump memory records control unit failure faultcodes which leads to good pumps being condemned)

   Part number 0928400403

Please note:  This type of spooling solenoid cannot be tested for function by measuring the internal coil resistance with an OHM meter.  They need to be mounted on a special test rig and pressured to over 150bar and driven and phased to prove function.  We are equipped here with the correct test rig to prove function before despatch.



Virginised PSG5 EDC units bare of solenoids and cables, used and tested A1 100% OK £150 + £9.75 UK delivery

     VP44 Electronics

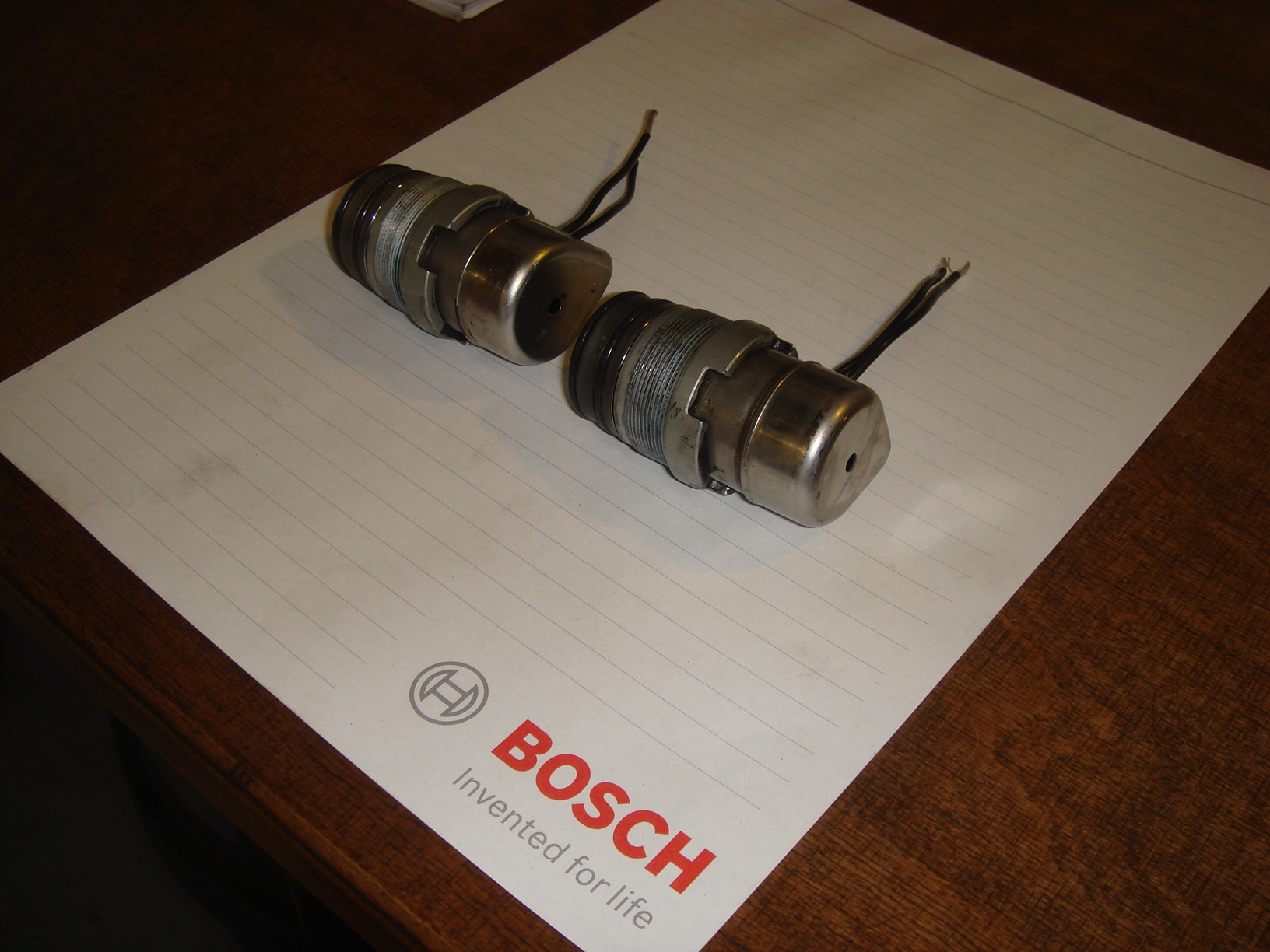

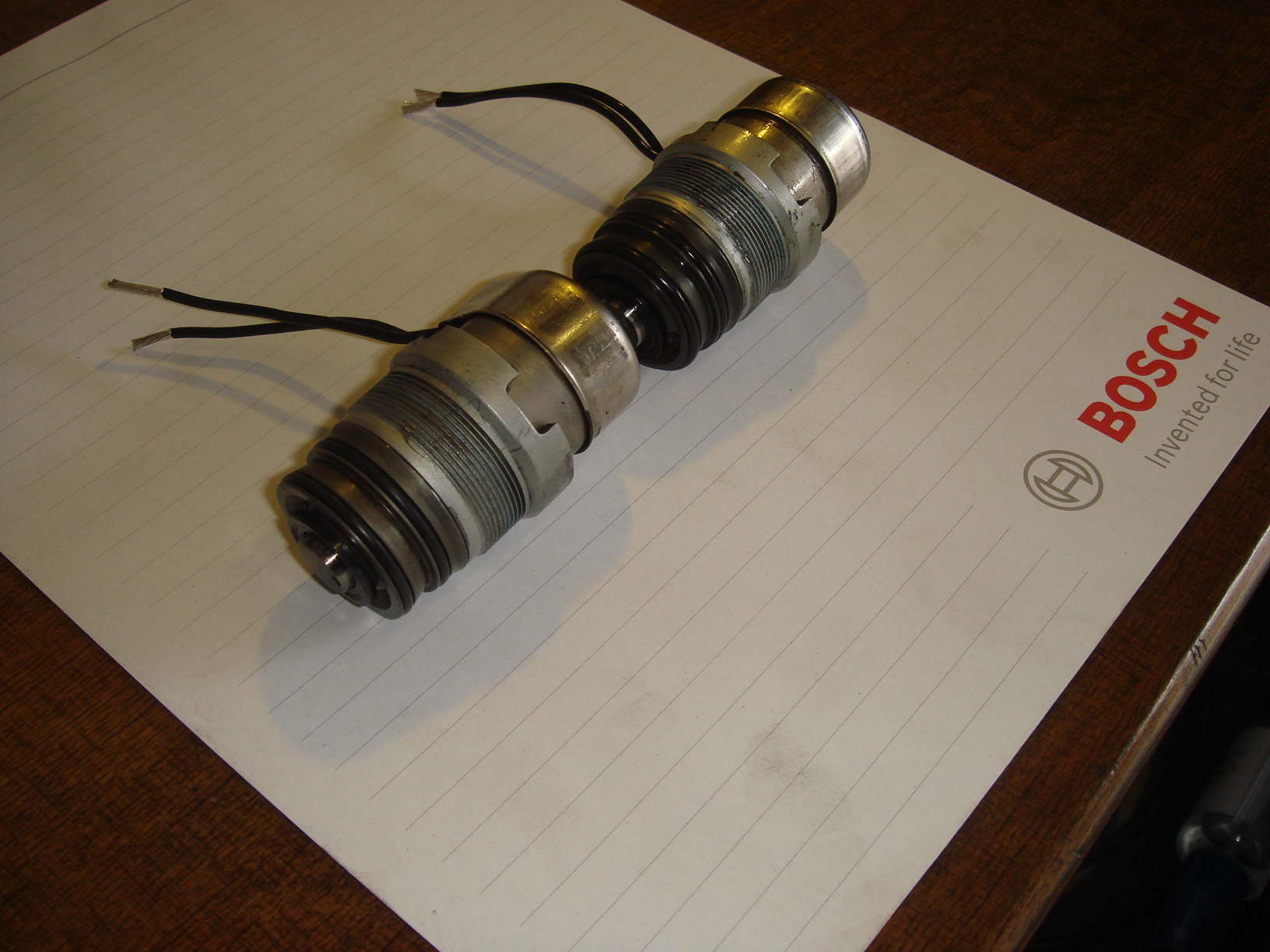

VP 30 Metering and timing solenoids used and tested A1 100% OK   £70each + £6.00 UK delivery

 VP 30 solenoids (Ford Transit Focus Connect and Rover 200)

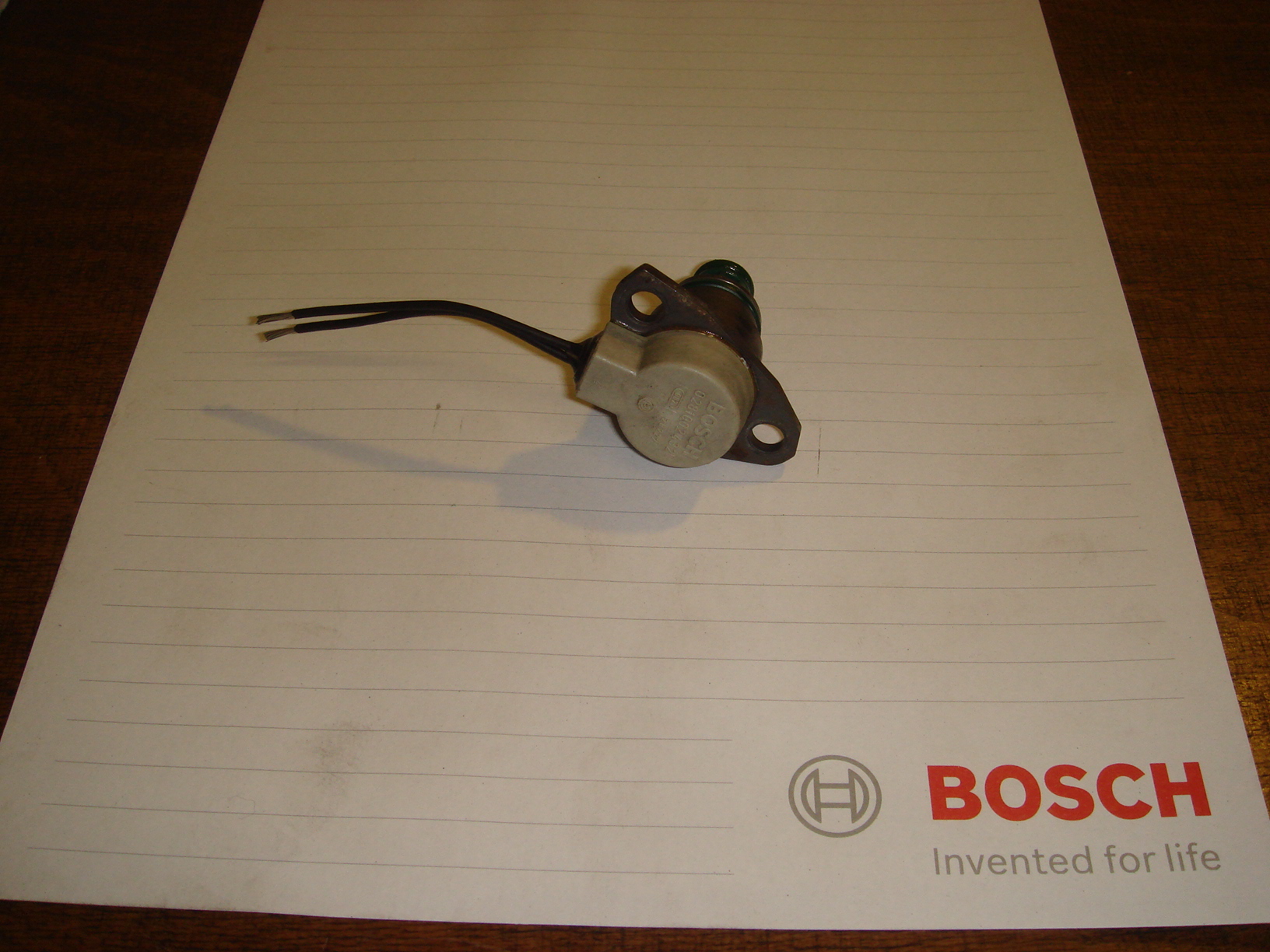

        Metering solenoids VP 30

        Timing (advance) solenoids VP 30

Please note:  This type of spooling solenoid cannot be tested for function by measuring the internal coil resistance with an OHM meter.  They need to be mounted on a special test rig and pressured to over 150bar and driven and phased to prove function.  We are equipped here with the correct test rig to prove function before despatch.

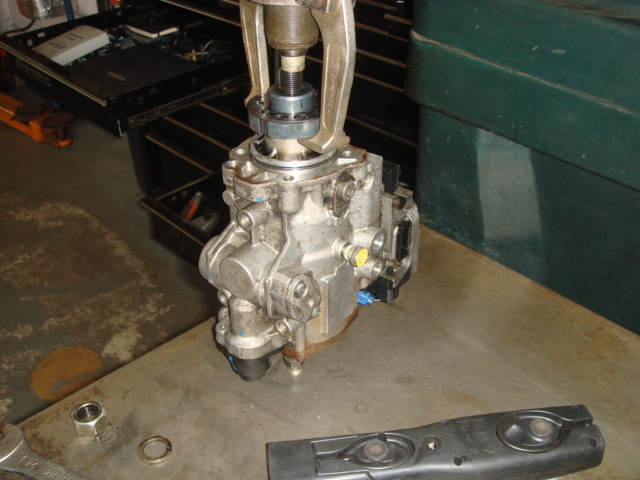

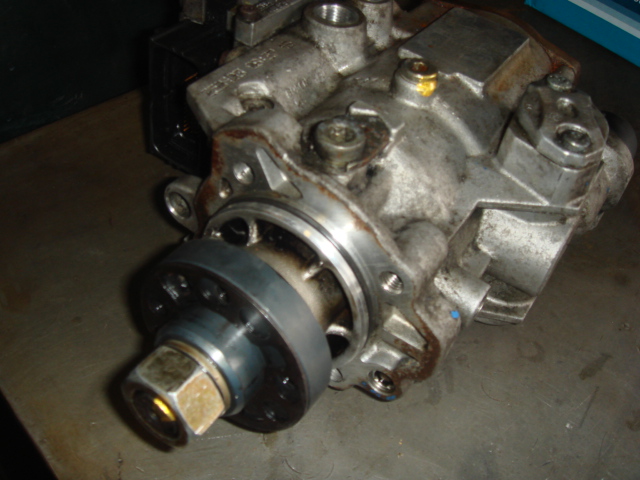

VP30 - VP44 pulley timing.  I had to add this...  As several people have enquired.  We can put the floating pulley back on after they have removed the front pulley mounting bolt by mistake.  Yes we have jigs and pins in house, to do this without having to mount the pump on a test rig and spill it up!  Simple static timing!  We always recheck this "on bench" to confirm dynamic timing.



If you can't see the pump or part you need.  Ring or email us.  Our stock is changing daily.  We have tons of secondhand parts from old or new pumps.  So if you need a small part or simply ruined a thread on something email for availability & price.  We also stock new Bosch Lucas Delphi OE parts of the shelf, for more info/prices email.

Warranty Note:  Due to the fragile nature of electronic spares and the need to fit them in the correct manner.  Our warranty for secondhand parts & diesel pumps is limited to 90 days (new parts fitted to used pumps 90days).  Should any component fail within 90days of purchase, we will be happy to replace or refund to the value of the part/pump.  Postage costs or any other expenses incurred are not included in this warranty.  No money will be refunded or parts replaced, until the part/pump in question has been returned to us for inspection.  If it is found that the part/pump has been fitted incorrectly, no refund/replacement will be given.  We are happy to take responsibility for the quality of parts/pumps supplied, but we are unable to take responsibility for your workmanship or mis-diagnosis.

New pumps and injectors are covered by a full one year warranty.  Postage costs or any other expenses incurred are not included in this warranty.  No money will be refunded or parts replaced, until the part/pump in question has been returned to us for inspection.  If it is found that the part/pump has been fitted incorrectly, no refund/replacement will be given.  We are happy to take responsibility for the quality of parts/pumps supplied, but we are unable to take responsibility for your workmanship or mis-diagnosis.

Please don't be afraid to phone "out of hours" for some "free advice" on how to fit the parts supplied by us.

  Card payments can be made over the phone by ringing 01553 782929.  Monday to Saturday 8.30am - 5.30pm.

Debit card payments are free, but we charge 2% for credit card payments.

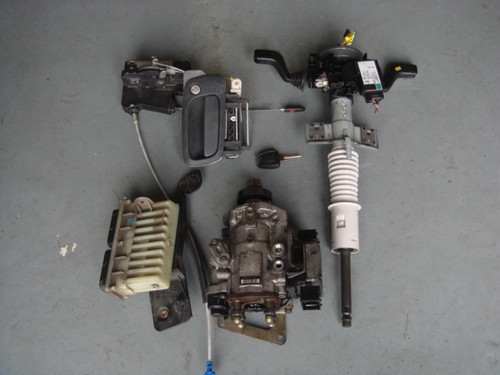

    Complete PSG16 system change with used parts.
