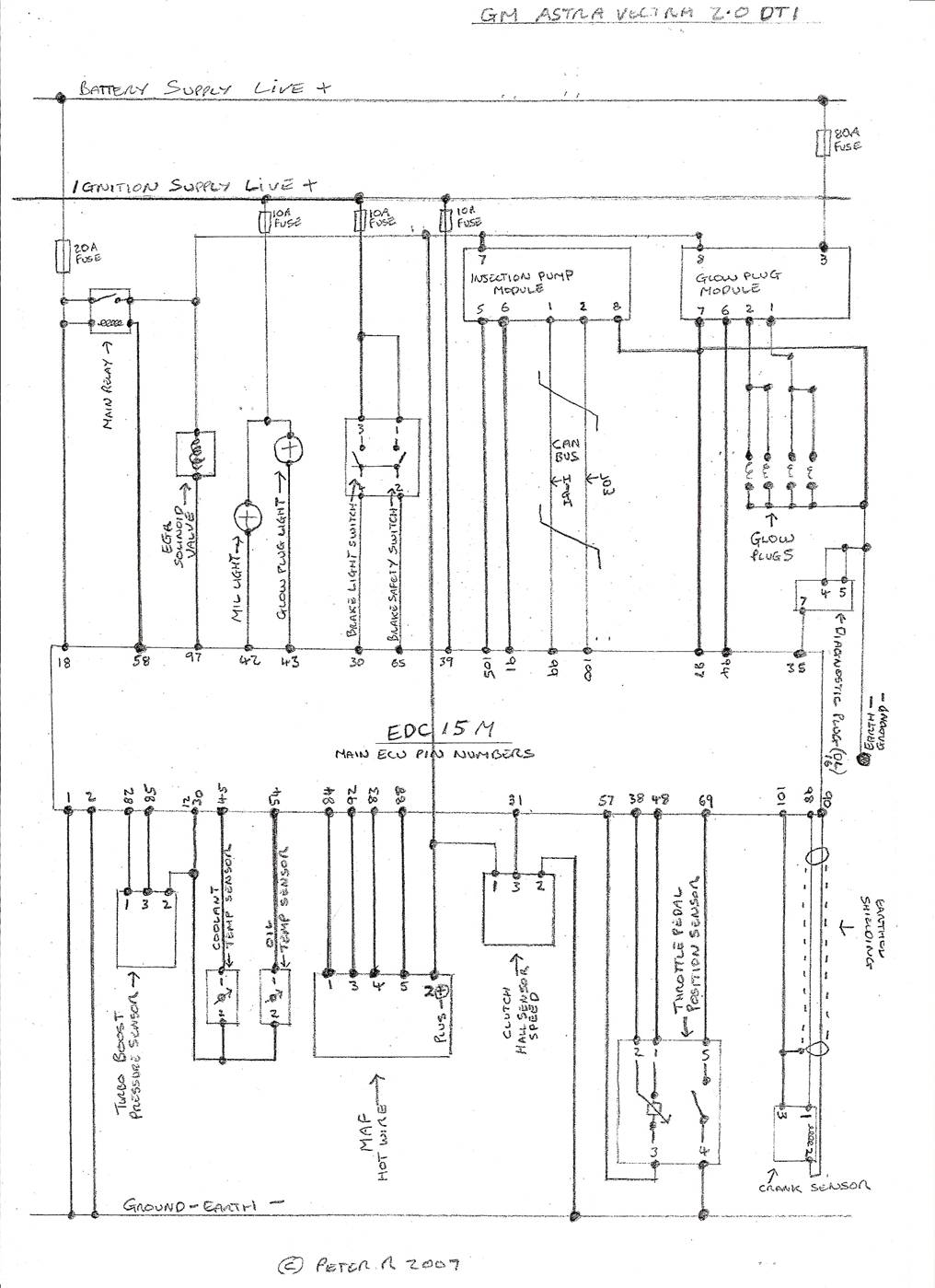

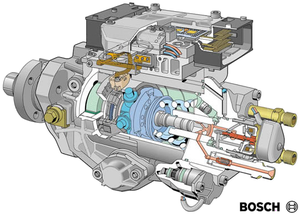

One of my many pencil wiring diagrams.  If you are struggling to get a wiring diagram or pinout schematics for any engine management system.  Email me and I will scribble something down on a bit of A4 paper.

All my drawings follow the same format.  i.e. the legrand is as follows:  Squiggles for coils or loads.  Crosses for bulbs.  Oblong boxes for fuses with ratings.  Arrows for variable resistors.  Broken lines for shielding. + for positive - for negative.  Dark round circle for wire connectors.

Scroll down page...  Drawing will auto size for a printer.....
